Adding a Card/Fob

Adding a Card/Fob

Adding a Card/Fob

Creating a Card

Select the "Configuration" tab


Select the "Personnel" tab.


Select the "Add" button.

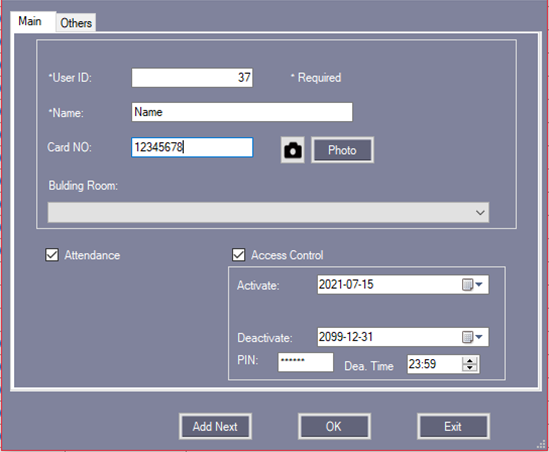

Enter the name for the fob in the name field and the number printed on the fob in the card number field. You can also select the building Field/Department(If applicable). Select "OK".


Assigning Privileges to a Card/Fob

**A card WILL NOT be functional until privileges are assigned**


Select the "Access Privilege" tab


Select "Change Privileges"

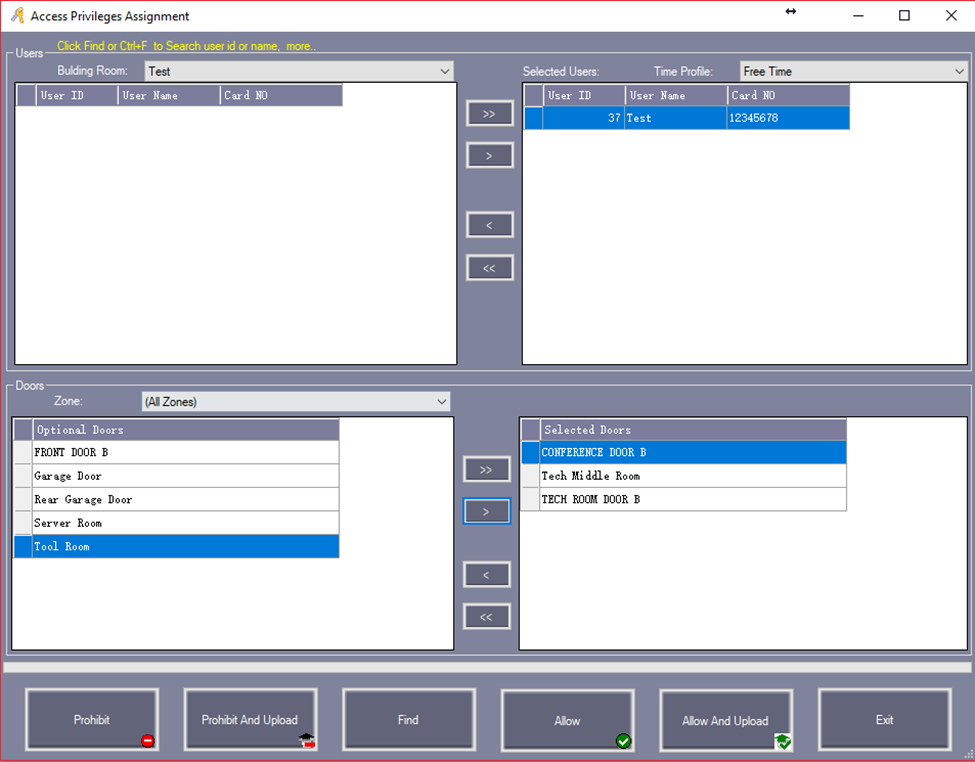

Use arrows to move preferred users and doors to the right. Select time profile (Free time = 24hr access). Select "Allow and Upload".

**See the article "Creating Time Profiles" if you would like fobs to be active on a schedule**
