Console mode is used to simulate a numeric keypad on the touch screen. This can be used to help see and clear troubles signals.

Steps to Access Console Mode

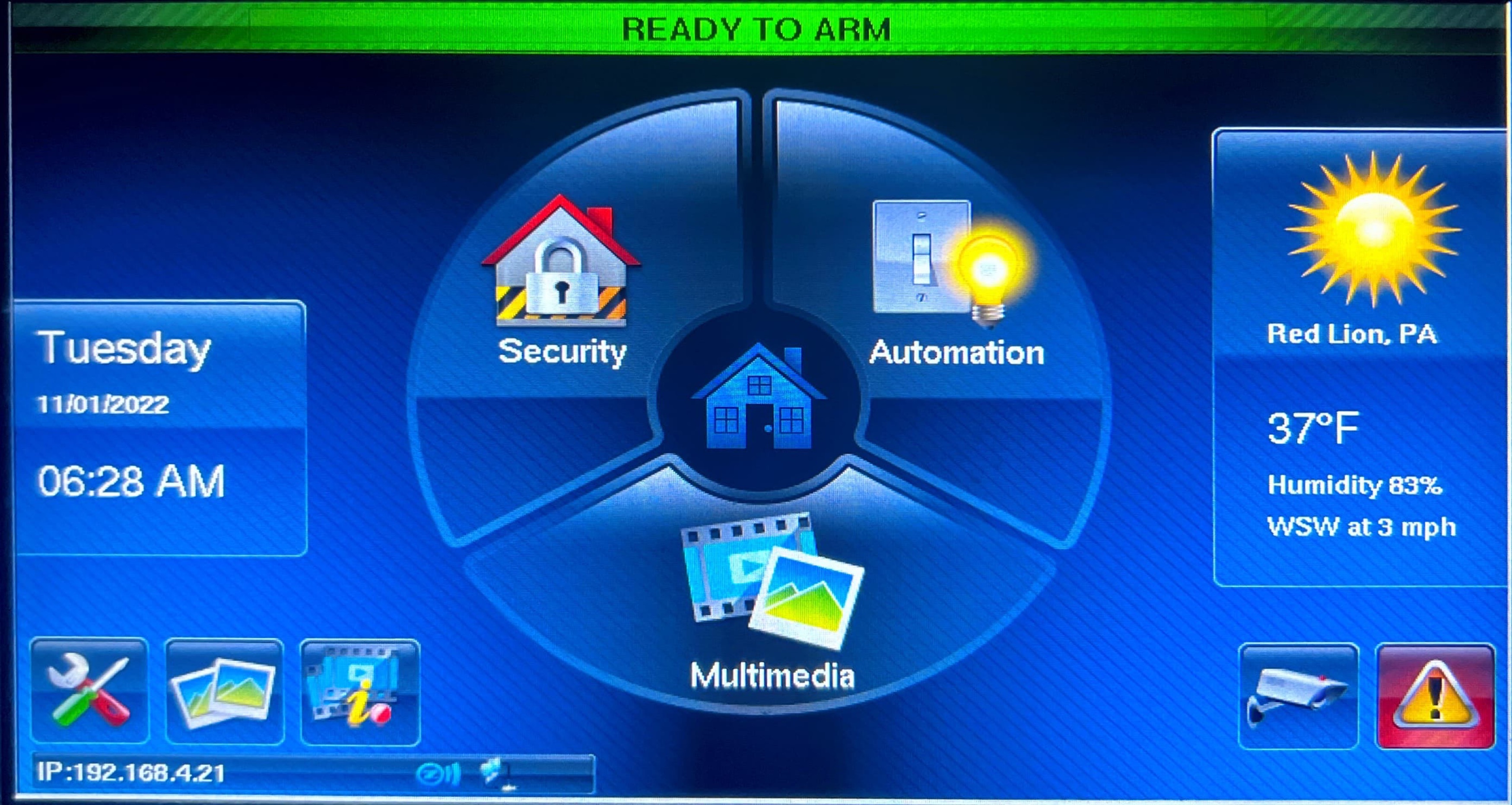

  1. Select "Security"


  1. Select "More Choices"

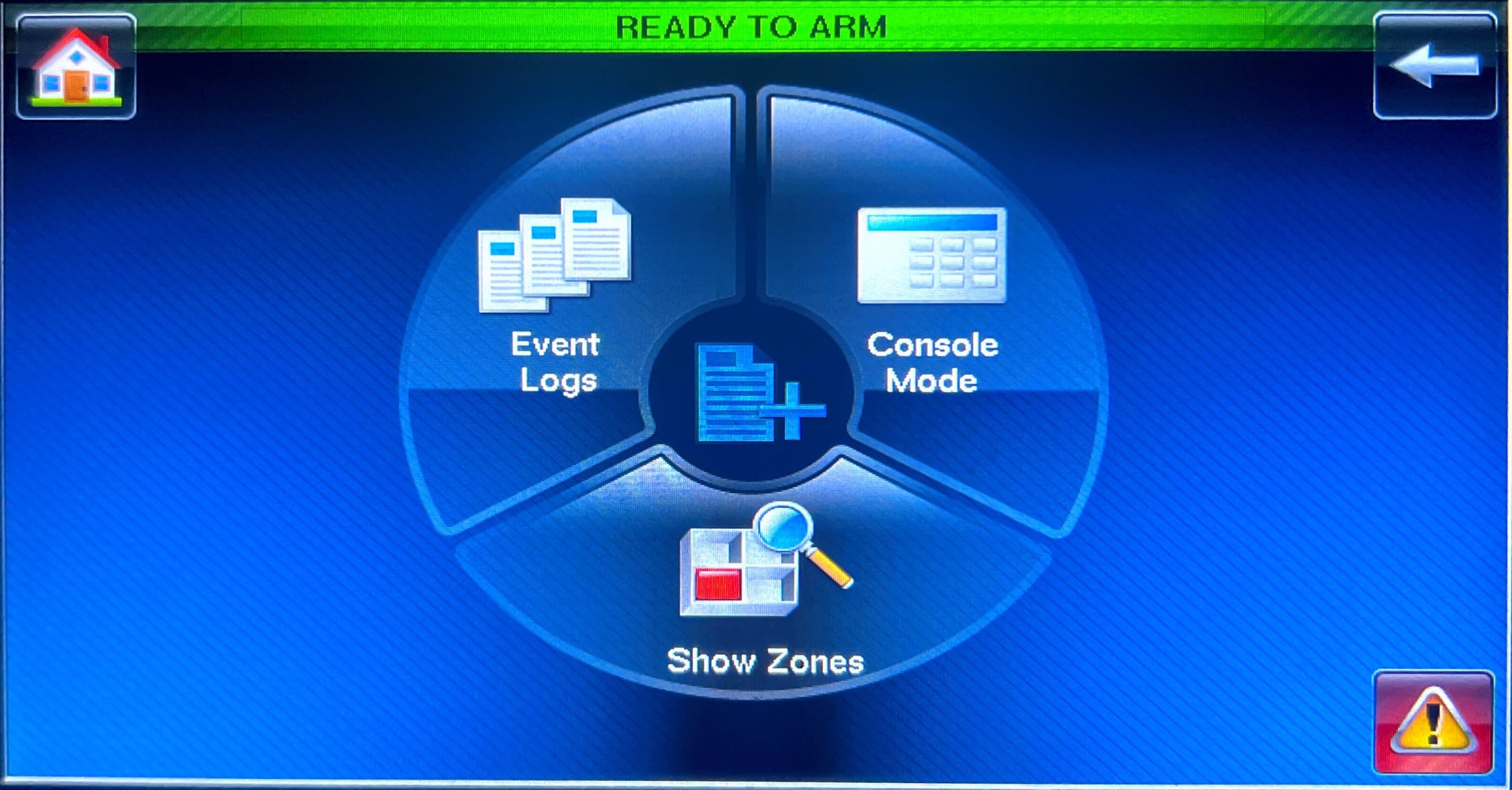

  1. Select "Console Mode"


  1. You can now use the touch screen like a normal keypad.
